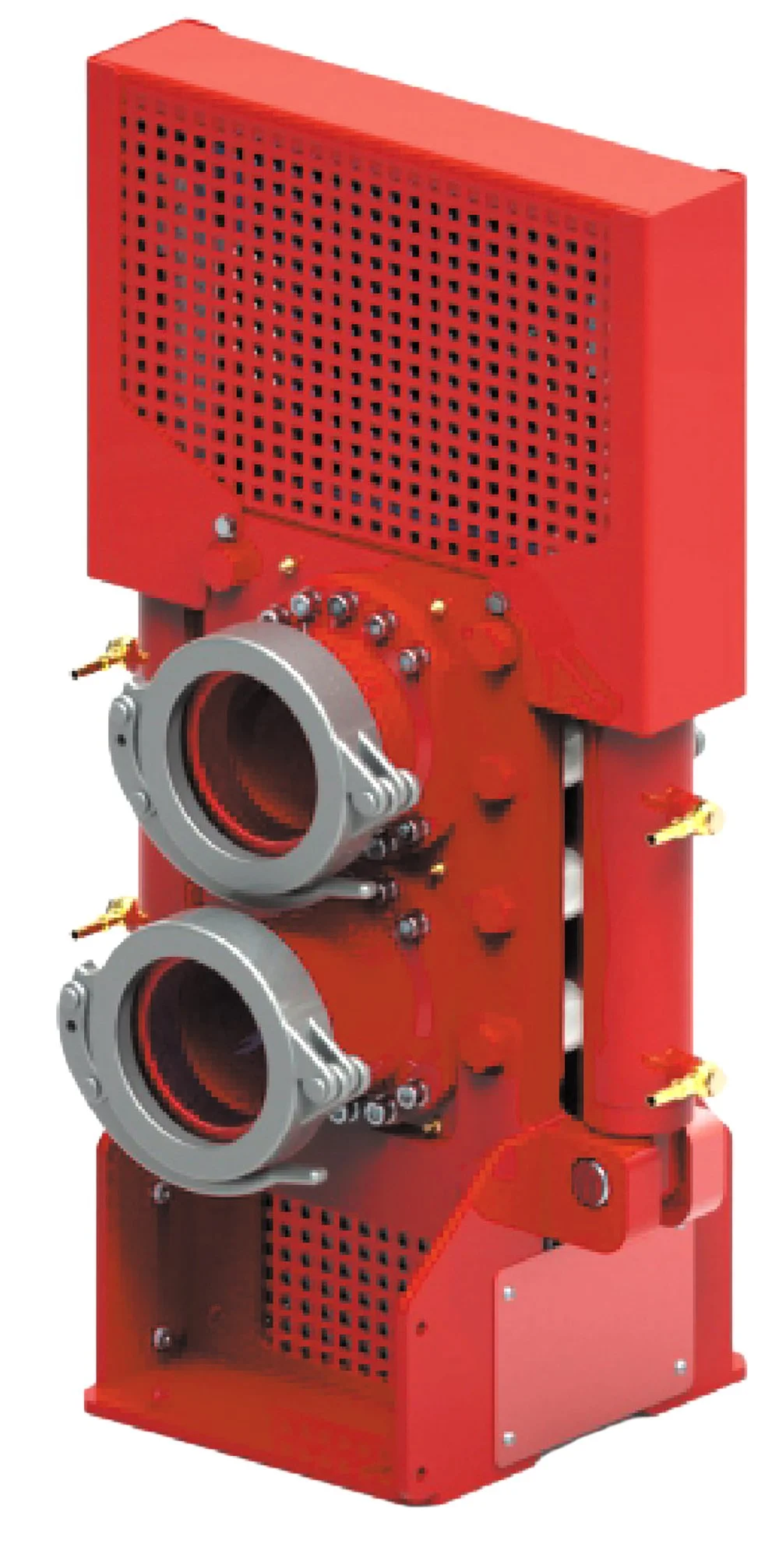

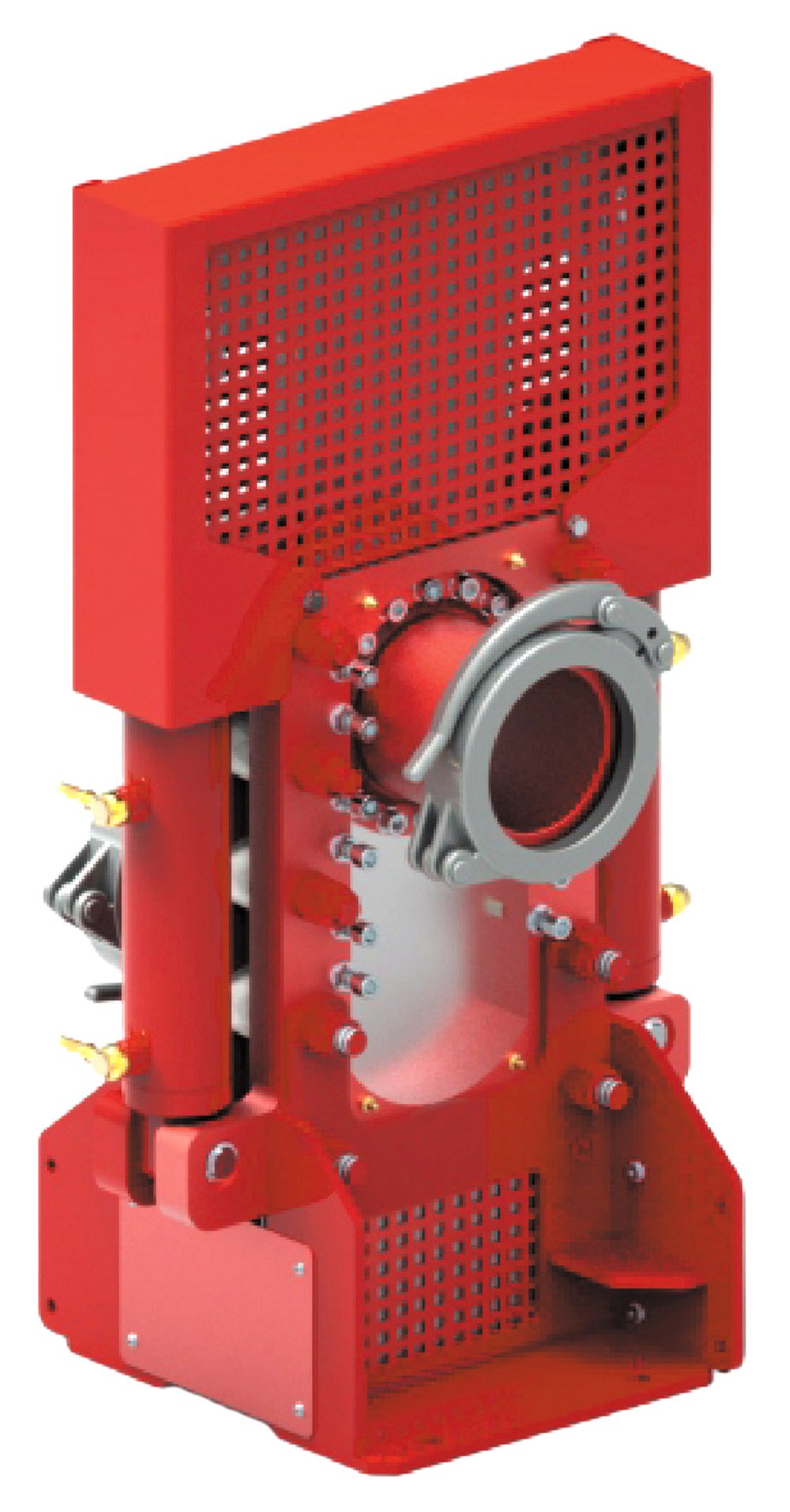

DLV - Hydraulic Vertical Diverter Valve

Model DLV - High Pressure

Switching between two delivery lines

Maximum delivery pressure 130 Bar (1885 psi)*

Pipeline diameter 125mm (5”)

Available with all type of collars M-OR-HD-SK-ZX

Power system available in various options: hand pump, manual distributor with quick-connectors and external electrical power unit

Also available in horizontal configuration

Manufactured in accordance to: UNI 12001:2012 (conveying, spraying and placing machines for concrete safety requirements)

 * Standard delivery line system rated at max line working pressure  of 85 Bar (1,233 psi).
