DLI - Manual Hydraulic Horizontal Diverter 3/2

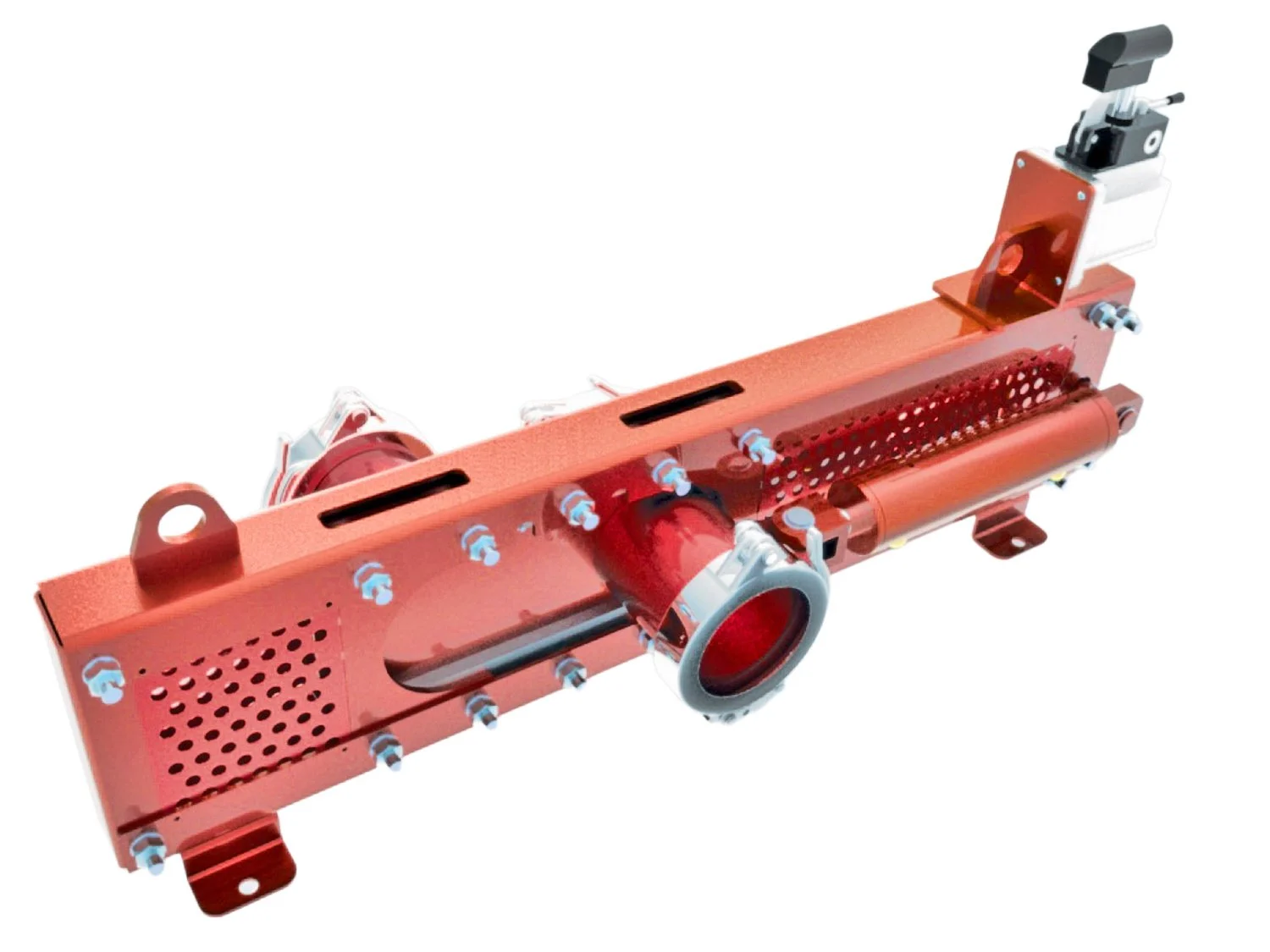

This shows a red DLI manual hydraulic horizontal diverter valve and one central cylinder.
Technical engineering drawing of a mechanical device with dimensions labeled, viewed from top, front, and side views.

3/2 DLI- Hydraulic Horizontal Diverter Standard manual hydraulic pump

Max pressure on concrete 85 Bar

Drive options:

Standard manual hydraulic pump

Lever directional control valve (optional for connection with external power unit)

Mobile hydraulic powerpack (optional)

According to the EN12001:2012 “Conveying, spraying and placing machines for concrete and mortar – Safety Requirements”

A technical data sheet with specifications for a hydraulic equipment, including working pressure of 85 bar, dimensions 132 x 67 x 32 centimeters, net weight 175 kilograms, maximum hydraulic circuit pressure of 220 bar, switching average time of 40 seconds, and hydraulic oil type ISO 32 Tamk 5kg.
